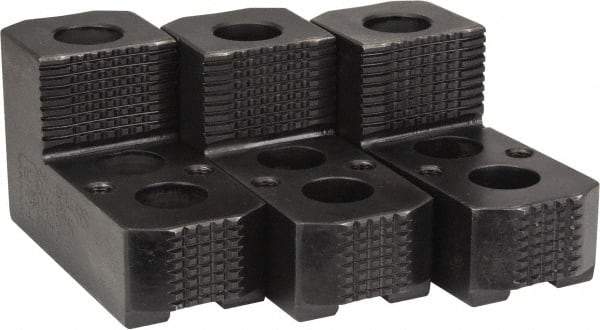

H & R Manufacturing - 10 to 11" Chuck Diam Compatibility, Case Hardened Steel 1.5mm x 60° Serrated Hard Lathe Top Jaws - 1 Step, 0.63" Groove Width, 1-3/4" Wide x 4-1/4" Long x 2-15/32" High
Item #: 06828180
Brand: H & R Manufacturing
Model #: HR-82-RJ-SS
Exact Tooling IR#: 04
Features and Benefits
Top jaws, also known as hard or step jaws, hold a workpiece during an operation. They are reversible and are bolted onto the master jaw.
| Product Specifications | |
|---|---|
| Jaw Type | Top Jaws |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 11 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 11.00 |
| Number of Steps | 1 |
| Material | Case Hardened Steel |
| Overall Width/Diameter (Inch) | 1-3/4 |
| Brand Compatibility | Kitagawa; Matsumoto |
| Overall Length (Inch) | 4-1/4 |
| Minimum Compatible Chuck Diameter (Inch) | 10 |
| Groove Width (Decimal Inch) | 0.6300 |
| Number of Jaws | 3 |
| Overall Height (Decimal Inch) | 2.4690 |
| Fastener Size (mm) | 12.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.1810 |
