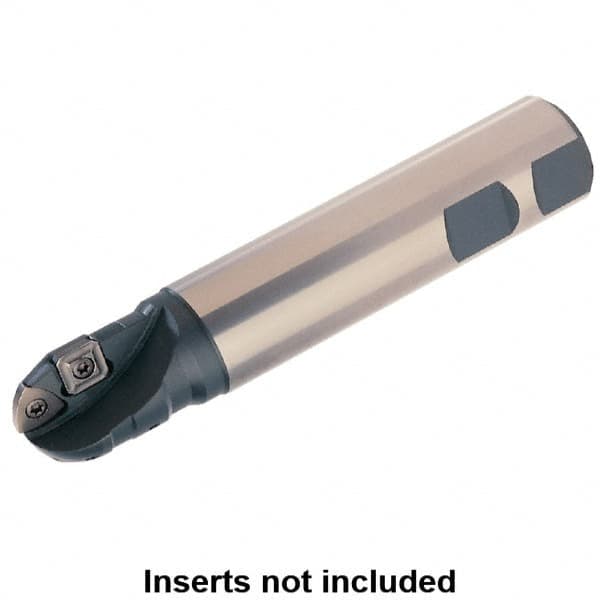

Kennametal - 2" Cut Diam, 2.1" Max Depth of Cut, 2" Shank Diam, 8.66" OAL, Indexable Ball Nose End Mill - 5" Head Length, Straight Shank, 4.347 Toolholder
Item #: 06809479
Brand: Kennametal
Model #: 1253266
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 2.1000 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Toolholder Style | 4.347 |
| Overall Length (Decimal Inch) | 8.6600 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Tapered Neck | Yes |
| Number of Flutes | 6 |
| Head Length (Decimal Inch) | 5.0000 |
| Number of Side Inserts Used on Toolholder | 1 |
