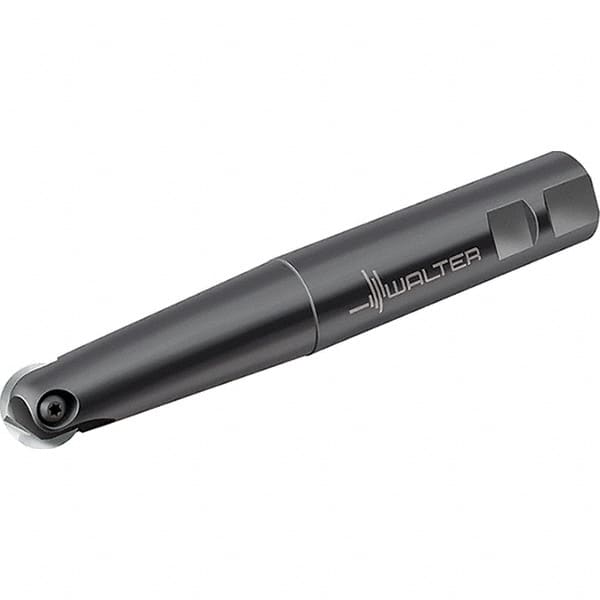

Walter - 25.4mm Cut Diam, 12.5mm Max Depth of Cut, 31.75mm Shank Diam, 210mm OAL, Indexable Ball Nose End Mill - 9,500 Max RPM
Item #: 06717656
Brand: Walter
Model #: 5026562
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.4 |
| Cutting Diameter (Decimal Inch) | 1.000 |
| Maximum Depth of Cut (mm) | 12.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Decimal Inch) | 1.250 |
| Series | F2139-UW |
| Overall Length (mm) | 210.00 |
| Overall Length (Decimal Inch) | 8.2680 |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Maximum RPM | 9500 |
