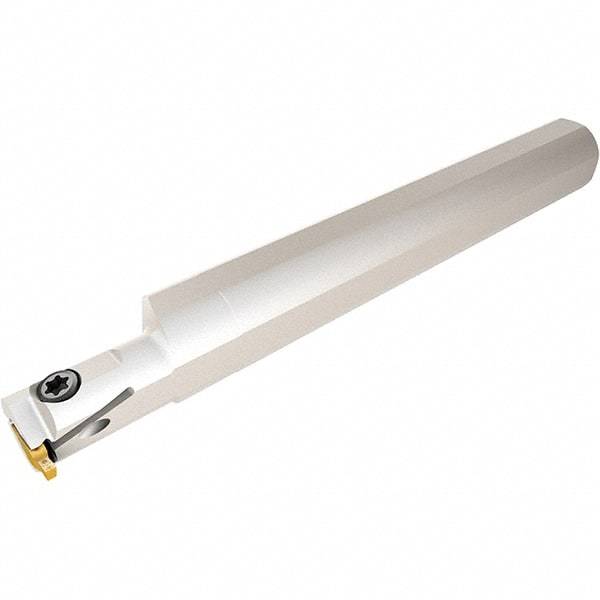

Iscar - 0.63" Min Bore Diam, 6" OAL, 5/8" Shank Diam, GEHIM Indexable Boring Bar - 0.098" Max Bore Depth, GEPI Insert, Clamp Holding Method
Item #: 06691323
Brand: Iscar
Model #: 2801200
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GEHIM |
| Series | Cut Grip |
| Minimum Bore Diameter (Decimal Inch) | 0.6300 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (Decimal Inch) | 0.0980 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | GEPI |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (Decimal Inch) | 0.4100 |
| Coolant Hole Diameter (mm) | 6.00 |
| Complete Insert Compatibility | GEPI 0.80-0.00RX; GEPI 1.00-0.10 LX; GEPI 1.00-0.10 RX; GEPI 1.00-0.50; GEPI 1.00-0.10; GEPI 1.04-0.00; GEPI 1.20-0.00; GEPI 1.25-0.10; GEPI 1.57-0.15RX; GEPI 1.85-0.10; GEPI 2.5-MT0.05; GEPI 2.5-WT0.05 |
| Toolholder Material | Steel |
