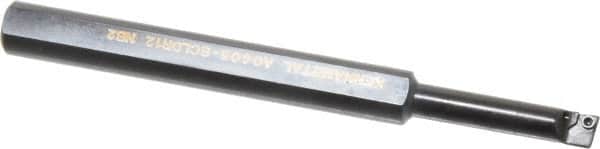

Kennametal - 7.62mm Min Bore Diam, 101.6mm OAL, 9.53mm Shank Diam, A-SCLD Indexable Boring Bar - 1-1/4" Max Bore Depth, CD.. Insert, Screw Holding Method
Item #: 06670715
Brand: Kennametal
Model #: 1094665
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SCLD |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 7.62 |
| Minimum Bore Diameter (Decimal Inch) | 0.3000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.2500 |
| Overall Length (mm) | 101.60 |
| Overall Length (Decimal Inch) | 4.0000 |
| Shank Diameter (mm) | 9.53 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | CD.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | -5 |
| Center to Cutting Edge (Decimal Inch) | 0.1560 |
| Insert Thickness (Inch) | 1/4 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 1.98 |
| Coolant Hole Diameter (Decimal Inch) | 0.0780 |
| Complete Insert Compatibility | CD.. 12061 |
| Toolholder Material | Steel |
