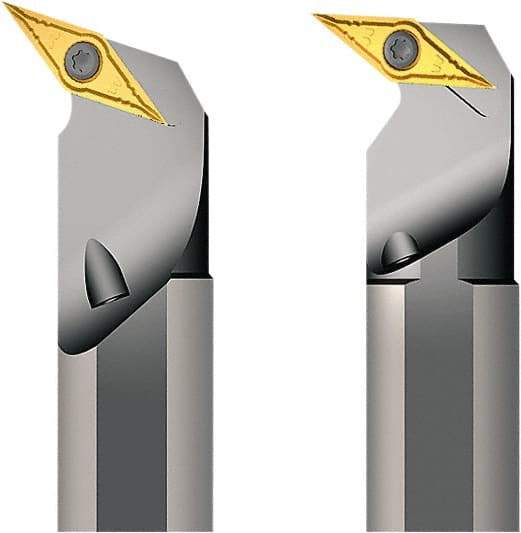

Seco - 1-1/8" Min Bore Diam, 10" OAL, 3/4" Shank Diam, A-SVQB Indexable Boring Bar - VBMT 21.5.. Insert, Screw Holding Method
Item #: 06612204
Brand: Seco
Model #: 02730
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SVQB |
| Series | Screw-On |
| Minimum Bore Diameter (Decimal Inch) | 1.1250 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | VBMT 21.5.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 107.5 |
| Center to Cutting Edge (Decimal Inch) | 0.5620 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 0 |
| Complete Insert Compatibility | VBMT 21.50.5-F1; VBMT 21.50.5-MF2; VBMT 21.51-F1; VBMT 21.51-MF2; VBMT 21.52-F1 |
| Toolholder Material | Steel |
