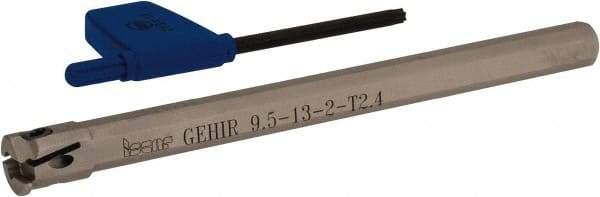

Iscar - GEHI, Internal, Right Hand, 0.094" Max Depth of Cut, 0.075 to 0.095" Groove Width, Indexable Grooving Tool Holder - GEMI.., GEPI.. Insert Compatibility, 3/8" Shank Width, 5" OAL, Through Coolant
Item #: 06592018
Brand: Iscar
Model #: 2801048
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0940 |
| Minimum Groove Width (Decimal Inch) | 0.0750 |
| Maximum Groove Width (Decimal Inch) | 0.0950 |
| Overall Length (Decimal Inch) | 5.0000 |
| Toolholder Style | GEHI |
| Insert Compatibility | GEMI..; GEPI.. |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Series | Cut Grip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (Decimal Inch) | 0.4920 |
| Center to Cutting Edge (Decimal Inch) | 0.3000 |
| Head Length (Decimal Inch) | 0.7900 |
| Complete Insert Compatibility | GEMI; GEPI |
