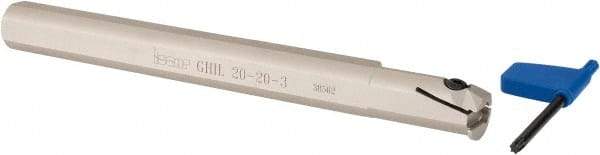

Iscar - GHIL, Internal, Left Hand, 4.5mm Max Depth of Cut, 2 to 3.5mm Groove Width, Indexable Grooving Tool Holder - 20mm Shank Width, 200mm OAL
Item #: 06591796
Brand: Iscar
Model #: 2800293
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 4.50 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 3.50 |
| Overall Length (mm) | 200.00 |
| Toolholder Style | GHIL |
| Shank Width/Diameter (mm) | 20.00 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 20.00 |
| Center to Cutting Edge (mm) | 14.50 |
| Head Length (mm) | 40.00 |
