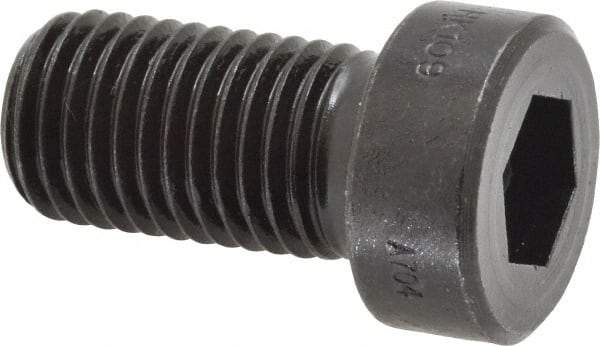

Holo-Krome - M16x2.00 Metric Coarse Hex Socket Drive, Low Socket Cap Screw - Grade 10.9 Alloy Steel, Black Oxide Finish, Fully Threaded, 30mm Length Under Head
Item #: 06569792
Brand: Holo-Krome
Model #: 69590
Exact Tooling IR#: 04
Features and Benefits
Low-socket cap head types have lower profiles than standard socket cap head types and are used in limited-clearance applications.
Hex socket drive types have a hex-shaped recess in the head and are driven with hex keys or hex socket bits. The driving surface is protected from external damage and provides six sides of contact surface for added torque.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Head Type | Low Socket Cap |
| Drive Type | Hex Socket |
| Thread Size (mm) | M16x2.00 |
| Length Measurement Type | Length Under Head |
| Length (mm) | 30.00 |
| Material | Alloy Steel |
| Finish/Coating | Black Oxide |
| Full or Partial Threading | Fully Threaded |
| Thread Standard | Metric Coarse |
| Fastener Standard | ANSI B1.13M |
| Hex Key Size (mm) | 12.00 |
| Material Grade | Grade 10.9 |
