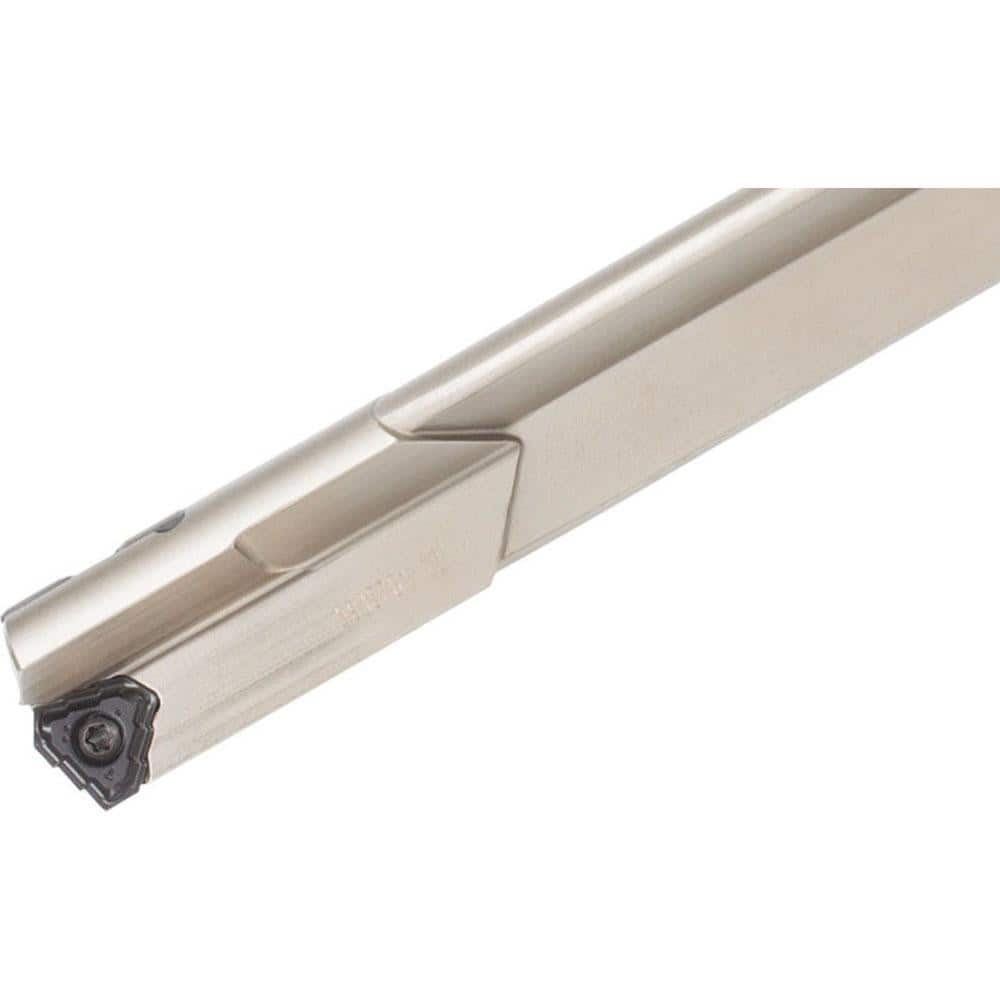

Indexable Insert Drills; Drill Style: MCTR; Maximum Drill Diameter (Inch): 17/32; Maximum Drill Diameter (Decimal Inch): 0.5311; Maximum Drill Depth (Decimal Inch): 8.3390; Shank Type: Flatted; Shank Diameter (Inch): 1; Shank Diameter (Decimal Inch): 1.00
Item #: 06423073
Brand: Tungaloy
Model #: 4853413
Product Specifications
| Drill Style | MCTR |
| Maximum Drill Diameter (Inch) | 17/32 |
| Maximum Drill Diameter (Decimal Inch) | 0.5311 |
| Maximum Drill Depth (Decimal Inch) | 8.3390 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 1 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 7.0000 to 10.0000 |
| Tool Material | Steel |
| Compatible Insert Style | LOGT |
| Compatible Insert Size Code | 06 |
| Drill Depth by Diameter Ratio | 15xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 11.9200 |
| Overall Length (mm) | 11.92 |
| Overall Length (Inch) | 11-59/64 |
| Series | MCTR |
| Shank Length (Decimal Inch) | 2.2050 |
| Minimum Achievable Hole Tolerance | 0.0020 in |
| Maximum Achievable Hole Tolerance | 0.0040 in |
| Tool Application | Drilling |
| Coolant Through | Yes |
