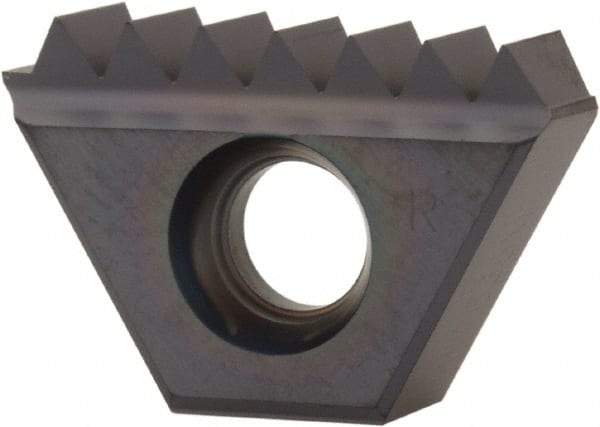

Kennametal - 8 TPI, Internal/External Thread, NPT Standard, STN KC635M Grade Thread Mill Insert - Carbide, TiAlN Coating
Item #: 06349583
Brand: Kennametal
Model #: 2429567
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | STN |
| Thread Type | Internal/External |
| Thread Standard | NPT |
| Threads Per Inch | 8 |
| Length (mm) | 26.92 |
| Length (Decimal Inch) | 1.0598 |
| Manufacturer's Grade | KC635M |
| Material | Carbide |
| Coating | TiAlN |
| Coating Process | PVD |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Conical | No |
