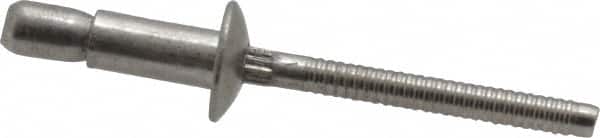

RivetKing - Size 64 Dome Head Stainless Steel Structural with Locking Stem Blind Rivet - Stainless Steel Mandrel, 0.062" to 0.27" Grip, 0.385" Head Diam, 0.194" to 0.204" Hole Diam, 0.415" Length Under Head, 3/16" Body Diam
Item #: 06327183
Brand: RivetKing
Model #: FBF64/STR/P100
Exact Tooling IR#: 04
Features and Benefits
Structural rivets with a locking stem have a locking collar on the stem that creates a watertight, vibration-resistant bond.
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Structural w/ Locking Stem |
| Head Type | Dome |
| Size Code | 64 |
| Rivet Material | Stainless Steel |
| Mandrel Material | Stainless Steel |
| Minimum Grip (Decimal Inch) | 0.0620 |
| Maximum Grip (Decimal Inch) | 0.2700 |
| Head Diameter (Decimal Inch) | 0.3850 |
| Minimum Hole Diameter (Decimal Inch) | 0.1940 |
| Maximum Hole Diameter (Decimal Inch) | 0.2040 |
| Drill Size (Wire) | #10 |
| Length Under Head (Decimal Inch) | 0.4150 |
| Body Diameter (Decimal Inch) | 0.1875 |
| Body Diameter (Inch) | 3/16 |
| Shear Strength (Lb.) | 1300.00 |
| Tensile Strength (Lb.) | 1000.00 |
| Fastener Standard | IFI 134 |
| Head Height (Decimal Inch) | 0.0900 |
