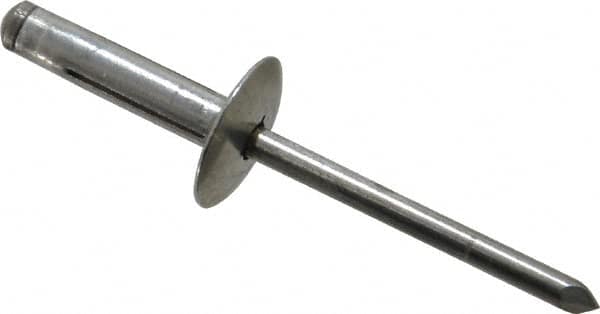

RivetKing - Size 0625 Large Flange Head Aluminum Tri Folding Blind Rivet - Aluminum Mandrel, 0.04" to 0.354" Grip, 0.55" Head Diam, 0.196" to 0.209" Hole Diam, 0.92" Length Under Head, 3/16" Body Diam
Item #: 06326995
Brand: RivetKing
Model #: ABL0625LF/P100
Exact Tooling IR#: 04
Features and Benefits
Tri folding rivets have three legs that split behind the workpiece to secure the rivet in place.
Large-flange head types have the largest bearing surface of blind rivets. They are used in oversized holes and to fasten soft or brittle materials to prevent pull-through.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Type | Tri Folding |
| Head Type | Large Flange |
| Size Code | 0625 |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.0400 |
| Maximum Grip (Decimal Inch) | 0.3540 |
| Head Diameter (Decimal Inch) | 0.5500 |
| Minimum Hole Diameter (Decimal Inch) | 0.1960 |
| Maximum Hole Diameter (Decimal Inch) | 0.2090 |
| Length Under Head (Decimal Inch) | 0.9200 |
| Body Diameter (Decimal Inch) | 0.1875 |
| Body Diameter (Inch) | 3/16 |
| Shear Strength (Lb.) | 202.00 |
| Tensile Strength (Lb.) | 269.00 |
| Rivet Finish/Coating | Bright |
| Head Height (Decimal Inch) | 0.0630 |
