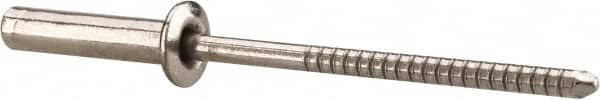

RivetKing - Size 46 Dome Head Stainless Steel Closed End Sealing Blind Rivet - Stainless Steel Mandrel, 0.313" to 3/8" Grip, 1/4" Head Diam, 0.129" to 0.133" Hole Diam, 0.61" Length Under Head, 1/8" Body Diam
Item #: 06326730
Brand: RivetKing
Model #: FBF46CE/P100
Exact Tooling IR#: 04
Features and Benefits
Closed end sealing rivets have a cup-shaped end that seals tightly to prevent liquid and air from entering.
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Closed End Sealing |
| Head Type | Dome |
| Size Code | 46 |
| Rivet Material | Stainless Steel |
| Mandrel Material | Stainless Steel |
| Minimum Grip (Decimal Inch) | 0.3130 |
| Maximum Grip (Decimal Inch) | 0.3750 |
| Head Diameter (Decimal Inch) | 0.2500 |
| Minimum Hole Diameter (Decimal Inch) | 0.1290 |
| Maximum Hole Diameter (Decimal Inch) | 0.1330 |
| Drill Size (Wire) | #30 |
| Length Under Head (Decimal Inch) | 0.6100 |
| Body Diameter (Decimal Inch) | 0.1250 |
| Body Diameter (Inch) | 1/8 |
| Shear Strength (Lb.) | 400.00 |
| Tensile Strength (Lb.) | 450.00 |
| Rivet Finish/Coating | Bright |
| Fastener Standard | IFI 126 Grade 51 |
| Head Height (Decimal Inch) | 0.0400 |
