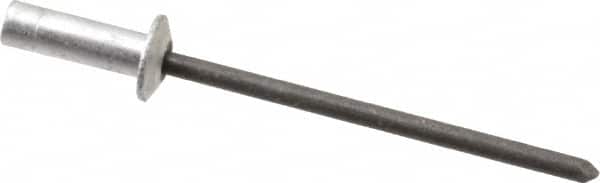

RivetKing - Size 43 Dome Head Aluminum Closed End Sealing Blind Rivet - Steel Mandrel, 0.126" to 0.187" Grip, 1/4" Head Diam, 0.129" to 0.133" Hole Diam, 0.422" Length Under Head, 1/8" Body Diam
Item #: 06326649
Brand: RivetKing
Model #: ABS43CE/P500
Exact Tooling IR#: 04
Features and Benefits
Closed end sealing rivets have a cup-shaped end that seals tightly to prevent liquid and air from entering.
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Closed End Sealing |
| Head Type | Dome |
| Size Code | 43 |
| Rivet Material | Aluminum |
| Mandrel Material | Steel |
| Minimum Grip (Decimal Inch) | 0.1260 |
| Maximum Grip (Decimal Inch) | 0.1870 |
| Head Diameter (Decimal Inch) | 0.2500 |
| Minimum Hole Diameter (Decimal Inch) | 0.1290 |
| Maximum Hole Diameter (Decimal Inch) | 0.1330 |
| Rivet Material Grade | 5056 |
| Drill Size (Wire) | #30 |
| Length Under Head (Decimal Inch) | 0.4220 |
| Body Diameter (Decimal Inch) | 0.1250 |
| Body Diameter (Inch) | 1/8 |
| Shear Strength (Lb.) | 240.00 |
| Tensile Strength (Lb.) | 280.00 |
| Rivet Finish/Coating | Phosphate (Mandrel) |
| Fastener Standard | IFI 126 Grade 19 |
| Head Height (Decimal Inch) | 0.0400 |
