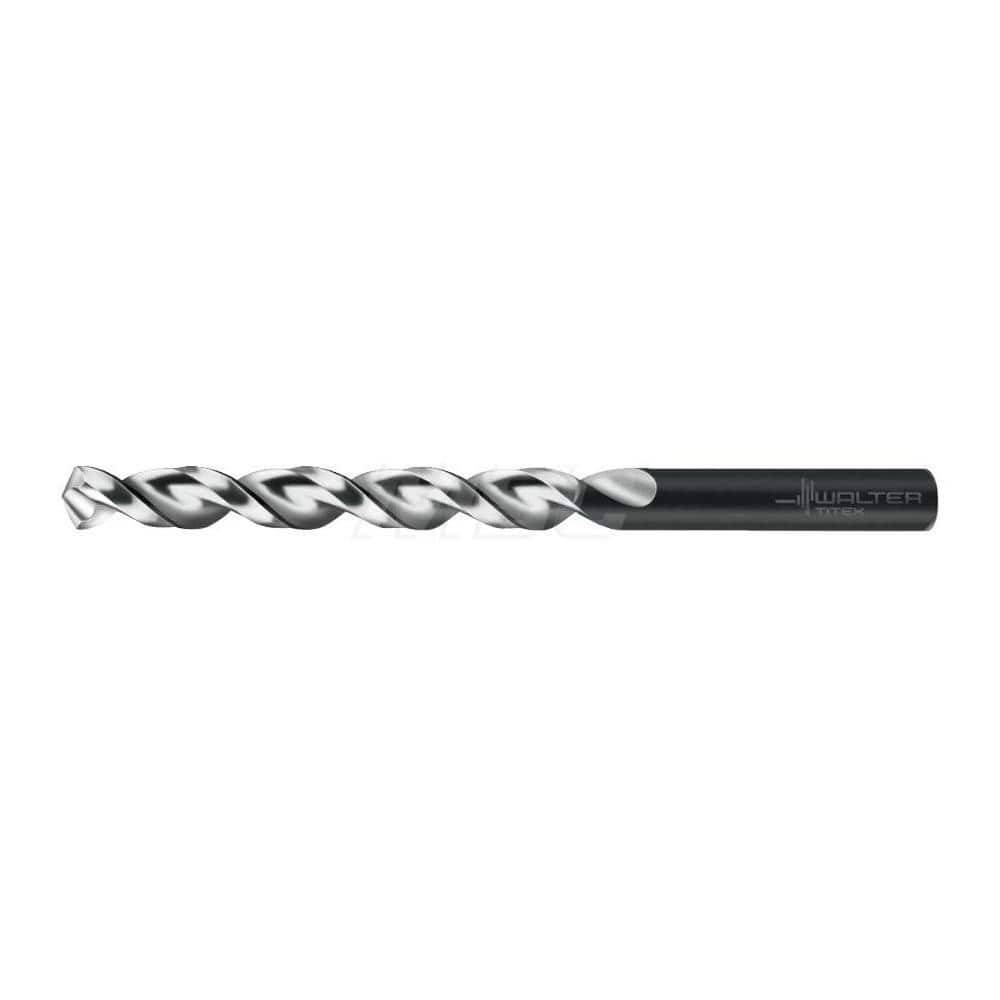

Jobber Length Drill Bit: 0.6299″ Dia, 130 °, High Speed Steel Oxide Finish, 7.0079″ OAL, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series A1222
Item #: 06299986
Brand: Walter-Titex
Model #: 5059449
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.6299 |
| Drill Bit Size (mm) | 16.00 |
| Drill Bit Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Oxide |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Parabolic |
| Point Type | UFL |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 178.00 |
| Overall Length (Decimal Inch) | 7.0079 |
| Flute Length (mm) | 120.00 |
| Flute Length (Decimal Inch) | 4.7244 |
| Series | A1222 |
| Tool Application | Blind Hole; Stack Drilling |
| Flute Length x Diamter Ratio | 8xD |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (mm) | 16.00 |
| Maximum Drilling Depth (Decimal Inch) | 4.0945 |
| Maximum Drilling Depth (mm) | 104.00 |
| Shank Length (mm) | 58.00 |
| Shank Length (Decimal Inch) | 2.2835 |
| Drill Point Length (mm) | 3.73 |
| Drill Point Length (Decimal Inch) | 0.1470 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | High Performance |
| Standards | ISO; ANSI |
| Specification Number | DIN 338 |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Drill Bit Size Range (mm) | 15.00 |
| Material Grade | M2 |
| Specification Designation | DIN |
 | |
| MSC Part # | 06299986 |
| Mfr Part # | 5059449 |
| Country of OriginCountry of Origin is subject to change | Brazil |
