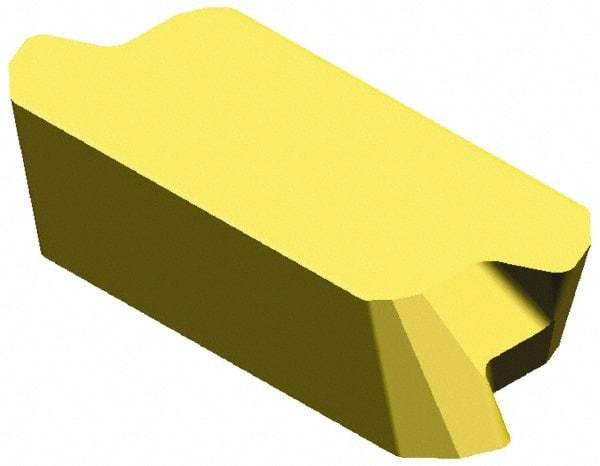

Kennametal - LNCX1806 Grade KCK15 Carbide Milling Insert - TiN/TiCN/Al2O3 Finish, 0.252" Thick, 2.16mm Corner Radius
Item #: 06225098
Brand: Kennametal
Model #: 2453321
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNCX |
| Insert Size | 1806 |
| Material | Carbide |
| Material Grade | C1 |
| Manufacturer's Grade | KCK15 |
| Coating | TiN/TiCN/Al2O3 |
| Width (Decimal Inch) | 0.3937 |
| Length (Decimal Inch) | 0.7283 |
| Thickness (Decimal Inch) | 0.2520 |
| Corner Radius (Decimal Inch) | 0.0850 |
| Corner Radius (mm) | 2.16 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| ISO Number | LNCX1806AZR11 |
