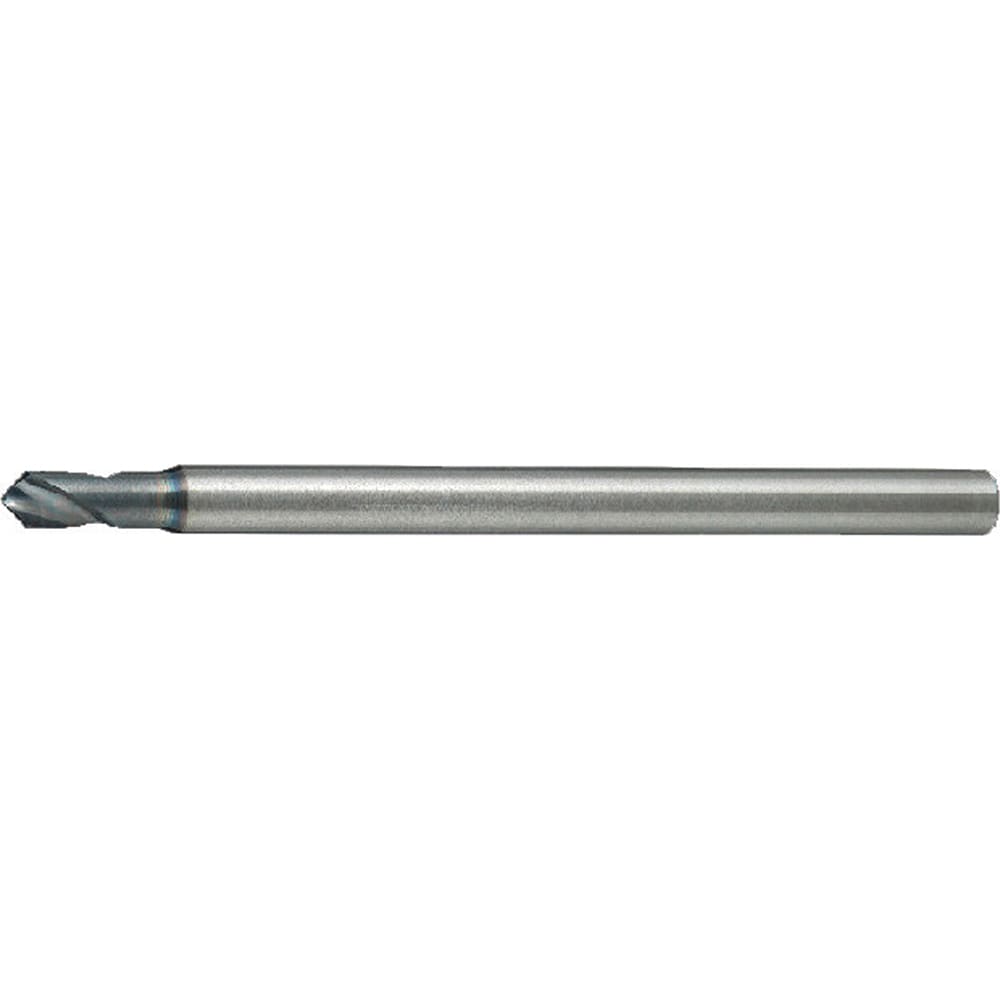

Micro Drill Bit: 1.00 mm Dia, (0.0394"), 90 deg, Solid Carbide
Item #: 67551234
Brand: Mitsubishi
Model #: 10614372
Product Specifications
| Drill Bit Size (mm) | 1.00 |
| Drill Bit Size (Decimal Inch) | 0.0394 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 0.0787 |
| Flute Length (mm) | 2.00 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Drill Point Angle | 90 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 0.35 |
| Maximum Drilling Depth (Decimal Inch) | 0.0138 |
| Number Of Flutes | 2 |
| Series | MICRO-DLE |
| Overall Length (Decimal Inch) | 1.7717 |
| Overall Length (mm) | 45.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-Thinning |
| Tool Application | Chamfering; Centering |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Standards | ISO |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.00 |
| Shank Length (Decimal Inch) | 1.5079 |
| Shank Length (mm) | 38.30 |
| UNSPSC Code | 23241600 |
| Drill Bit Size (mm) | 1.00 |
| Drill Bit Size (Decimal Inch) | 0.0394 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 0.0787 |
| Flute Length (mm) | 2.00 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Drill Point Angle | 90 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 0.35 |
| Maximum Drilling Depth (Decimal Inch) | 0.0138 |
| Number Of Flutes | 2 |
| Series | MICRO-DLE |
| Overall Length (Decimal Inch) | 1.7717 |
| Overall Length (mm) | 45.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-Thinning |
| Tool Application | Chamfering; Centering |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Standards | ISO |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.00 |
| Shank Length (Decimal Inch) | 1.5079 |
| Shank Length (mm) | 38.30 |
| UNSPSC Code | 23241600 |
| MSC Part # | 67551234 |
| Mfr Part # | 10614372 |
| Country of Origin Country of Origin is subject to change | Japan |
