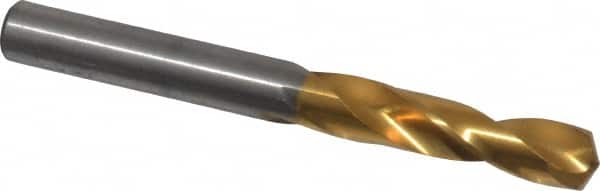

Chicago-Latrobe - 0.302" 135° Spiral Flute High Speed Steel Screw Machine Drill Bit - TiN Finish, Right Hand Cut, 1-5/8" Flute Length, 2-13/16" OAL, Split Point, Straight Shank
Item #: 06131718
Brand: Chicago-Latrobe
Model #: 48245
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3020 |
| Drill Bit Size (Letter) | N |
| Drill Point Angle | 135 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 1-5/8 |
| Overall Length (Inch) | 2-13/16 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.3020 |
| Specification Designation | NAS |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0010 |
| Specification Number | NAS 907 |
| Web Thinning | Web-Thinned |
| Through Coolant | No |
| Series/List | 2159 |
