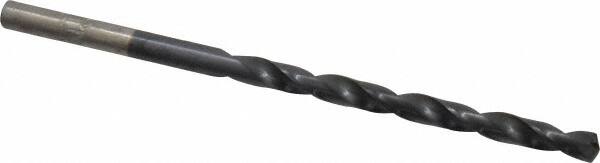

Chicago-Latrobe - #21 135° Cobalt Jobber Drill - TiAlN Finish, Right Hand Cut, Spiral Flute, 3-1/4" OAL, Split Point
Item #: 06130967
Brand: Chicago-Latrobe
Model #: 44991
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Wire) | #21 |
| Drill Bit Size (Decimal Inch) | 0.1590 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Flute Length (Inch) | 2-1/8 |
| Overall Length (Inch) | 3-1/4 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.1590 |
| Series/List | 550TA |
