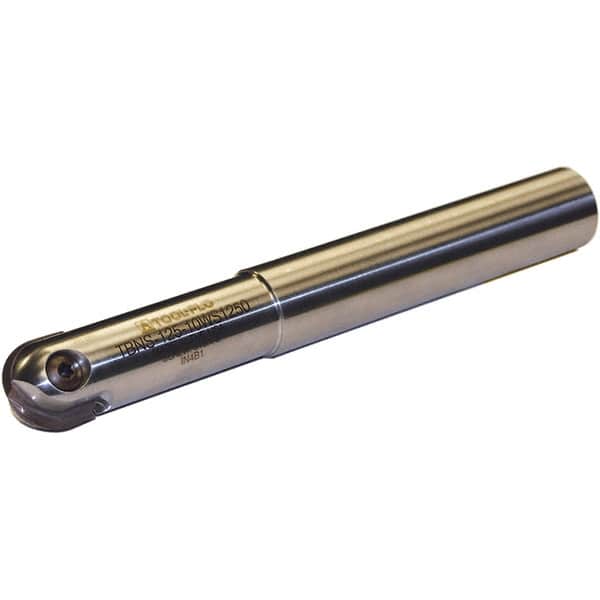

Tool-Flo - 3/4" Cut Diam, 3/4" Shank Diam, 6-3/4" OAL, Indexable Ball Nose End Mill - 2-3/8" Head Length, Straight Shank, TBN Toolholder, TBNR 750, TBRR 750 Insert
Item #: 06121289
Brand: Tool-Flo
Model #: TBNS75067WS750
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | TBNR 750; TBRR 750 |
| Toolholder Style | TBN |
| Series | Rigid-Lock |
| Overall Length (Decimal Inch) | 6.7500 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Head Length (Decimal Inch) | 2.3750 |
| Neck Diameter (Decimal Inch) | 0.6900 |
