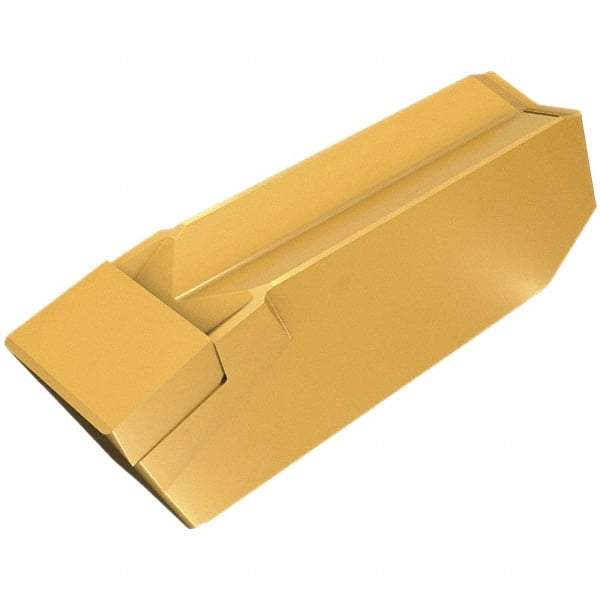

Iscar - 500K040GITM Grade IB50, 5mm Cutting Width PCBN Grooving Insert - 0.5mm Max Depth of Cut, Neutral, 0.4mm Corner Radius
Item #: 05996897
Brand: Iscar
Model #: 6402560
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | GITM |
| Insert Size | 500K040 |
| Material | PCBN |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 0.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Material Grade | C3/C4 |
| Manufacturer's Grade | IB50 |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
