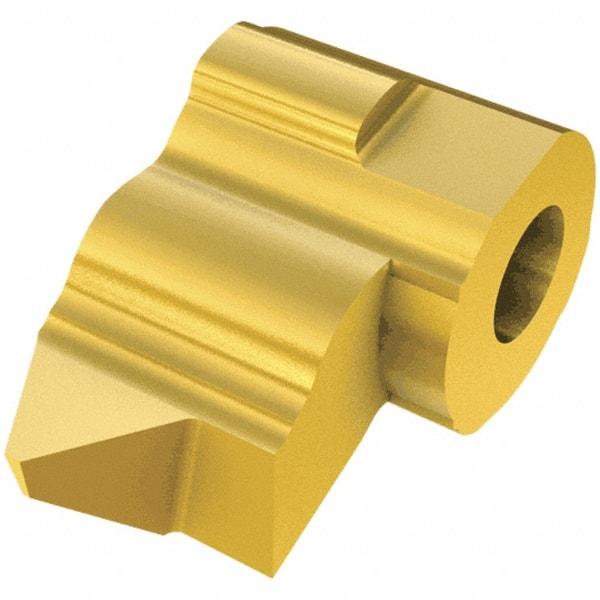

Iscar - UMGR4 Grade IC508, Internal Partial Profile 55° Threading Insert - 0.5 to 1.4mm & 18 to 48 TPI Int Pitch, Right Hand Insert, TiCN/TiN Finish, Carbide
Item #: 05996780
Brand: Iscar
Model #: 6403065
Exact Tooling IR#: 04
Features and Benefits
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | UMGR |
| Insert Size | 4 |
| Thread Type | Internal |
| Insert Hand | Right Hand |
| Thread Standard | Partial Profile 55 Degrees |
| Manufacturer's Grade | IC508 |
| Internal Pitch/TPI | 0.50-1.40 mm; 18-48 TPI |
| Coating | TiCN/TiN |
| Material | Carbide |
| Coating Process | PVD |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Width of Cutting Tip (Decimal Inch) | 0.0040 |
| Series | MiniCham |
| Included Angle of Threading Tip | 55 |
