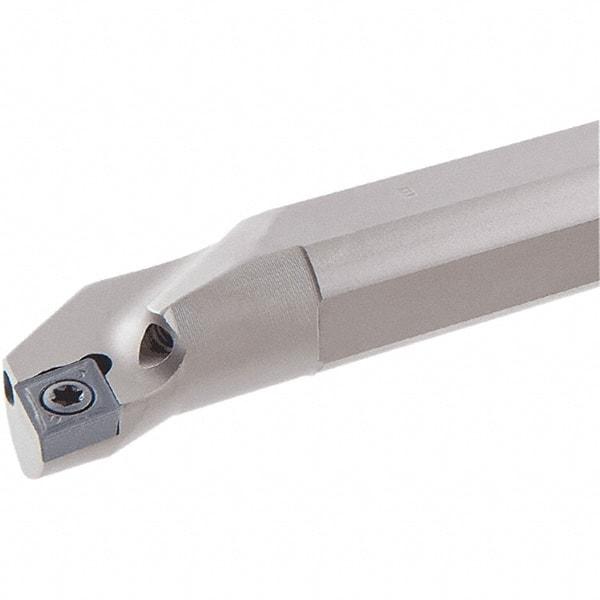

Iscar - 14mm Min Bore Diam, 150mm OAL, 10mm Shank Diam, E-SCLC Indexable Boring Bar - CC.T 0602.. Insert, Screw Holding Method
Item #: 05996392
Brand: Iscar
Model #: 3690390
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-SCLC |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 14.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.5512 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Insert Compatibility | CC.T 0602.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (mm) | 7.00 |
| Center to Cutting Edge (Decimal Inch) | 0.2756 |
| Rake Angle | -7 |
| Complete Insert Compatibility | CCGT 060201-AS; CCGT 060201-SM; CCGT 060202; CCGT 060202-AS; CCGT 060202-SM; CCGT 060202L; CCGT 060204; CCGT 060204-AS; CCGT 060204L; CCMT 060202; CCMT 060202-14; CCMT 060202-SM; CCMT 060202T; CCMT 060204-14; CCMT 060204-SM; CCMT 060204T; CCMT 060208-SM |
| Toolholder Material | Carbide |
