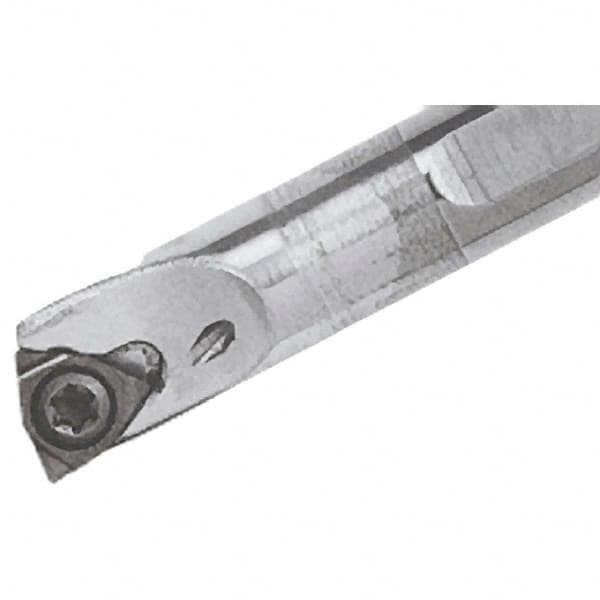

Iscar - 8.7mm Min Bore Diam, 110mm OAL, 8mm Shank Diam, A-SWUC Indexable Boring Bar - WCGT 0201.. Insert
Item #: 05993704
Brand: Iscar
Model #: 3601997
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SWUC |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 8.70 |
| Minimum Bore Diameter (Decimal Inch) | 0.3425 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Compatibility | WCGT 0201.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Rake | Negative |
| Center to Cutting Edge (mm) | 4.30 |
| Center to Cutting Edge (Decimal Inch) | 0.1693 |
| Rake Angle | -12 |
| Complete Insert Compatibility | WCGT 020102L; WCGT 020104L |
| Toolholder Material | Steel |
