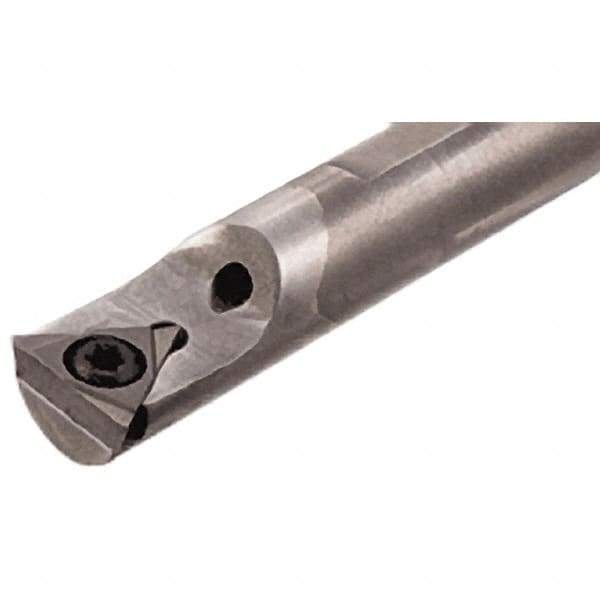

Iscar - 13mm Min Bore Diam, 170mm OAL, 12mm Shank Diam, E-STFP-X Indexable Boring Bar - TPGX 0902.. Insert
Item #: 05993654
Brand: Iscar
Model #: 3601992
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-STFP-X |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 13.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.5118 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | TPGX 0902.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Rake | Negative |
| Center to Cutting Edge (mm) | 6.70 |
| Center to Cutting Edge (Decimal Inch) | 0.2638 |
| Rake Angle | -8 |
| Complete Insert Compatibility | TPGX 090202; TPGX 090202-L; TPGX 090202T; TPGX 090204; TPGX 090204-L; TPGX 090204T |
| Toolholder Material | Carbide |
