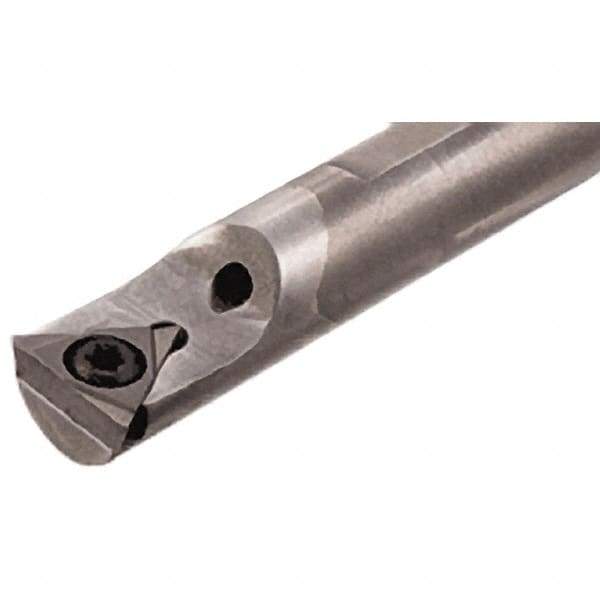

Iscar - 13.5mm Min Bore Diam, 150mm OAL, 12mm Shank Diam, A-STFP-X Indexable Boring Bar - TPG.. 1103.. Insert
Item #: 05993589
Brand: Iscar
Model #: 3601985
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STFP-X |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 13.50 |
| Minimum Bore Diameter (Decimal Inch) | 0.5315 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | TPG.. 1103.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Rake | Negative |
| Center to Cutting Edge (mm) | 6.80 |
| Center to Cutting Edge (Decimal Inch) | 0.2677 |
| Rake Angle | -10 |
| Complete Insert Compatibility | TPGW 110304-M3; TPGW 110308-M3; TPGX 110302; TPGX 110302-L; TPGX 110302T; TPGX 110304; TPGX 110304-L; TPGX 110304T; TPGX 110308-L |
| Toolholder Material | Steel |
