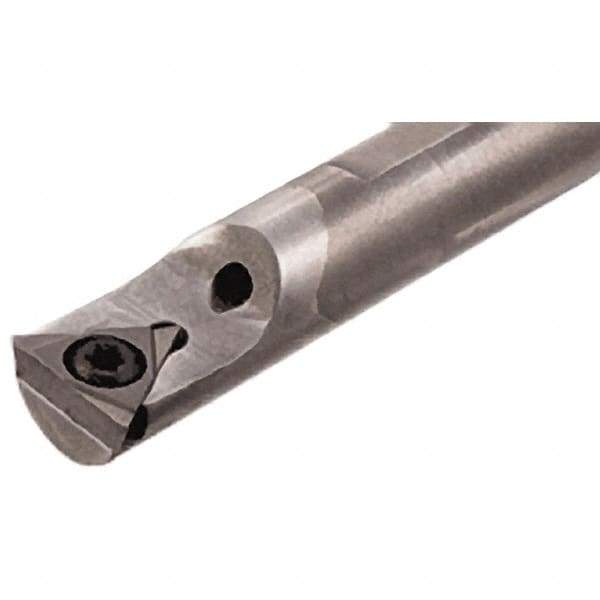

Iscar - 9.5mm Min Bore Diam, 110mm OAL, 8mm Shank Diam, A-STFP-X Indexable Boring Bar - TPGX 0902.. Insert
Item #: 05993548
Brand: Iscar
Model #: 3601981
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STFP-X |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 9.50 |
| Minimum Bore Diameter (Decimal Inch) | 0.3740 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Compatibility | TPGX 0902.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Rake | Negative |
| Center to Cutting Edge (mm) | 5.00 |
| Center to Cutting Edge (Decimal Inch) | 0.1969 |
| Rake Angle | -15 |
| Complete Insert Compatibility | TPGX 090202; TPGX 090202-L; TPGX 090202T; TPGX 090204; TPGX 090204-L; TPGX 090204T |
| Toolholder Material | Steel |
