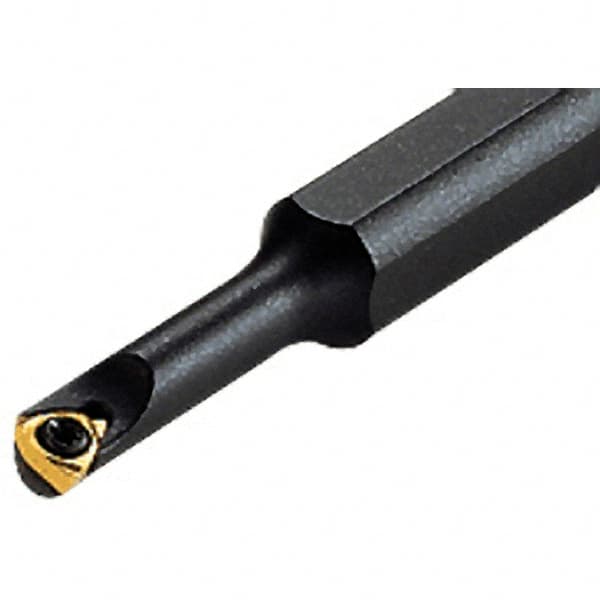

Iscar - 10.9mm Min Bore Diam, 150mm OAL, 10mm Shank Diam, E-SWUB Indexable Boring Bar - WB.T 0601.. Insert, Screw or Clamp Holding Method
Item #: 05993324
Brand: Iscar
Model #: 3601911
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-SWUB |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 10.90 |
| Minimum Bore Diameter (Decimal Inch) | 0.4291 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Insert Compatibility | WB.T 0601.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 5.20 |
| Center to Cutting Edge (Decimal Inch) | 0.2047 |
| Rake Angle | -12 |
| Complete Insert Compatibility | WBGT 060102L; WBMT 060101L; WBMT 060102L |
| Toolholder Material | Carbide |
