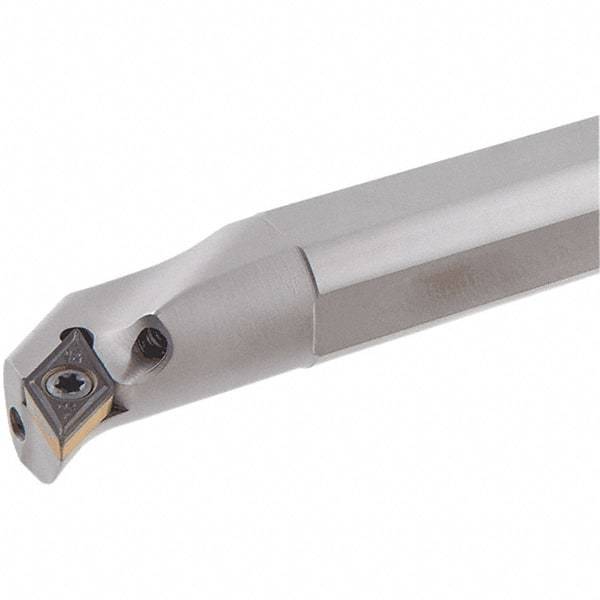

Iscar - 6.5mm Min Bore Diam, 100mm OAL, 6mm Shank Diam, E-SWUB Indexable Boring Bar - WB.T 0601.. Insert, Screw or Clamp Holding Method
Item #: 05993266
Brand: Iscar
Model #: 3601905
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-SWUB |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 6.50 |
| Minimum Bore Diameter (Decimal Inch) | 0.2559 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Insert Compatibility | WB.T 0601.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 3.30 |
| Center to Cutting Edge (Decimal Inch) | 0.1299 |
| Rake Angle | -15 |
| Complete Insert Compatibility | WBGT 060102L; WBMT 060101L; WBMT 060102L |
| Toolholder Material | Carbide |
