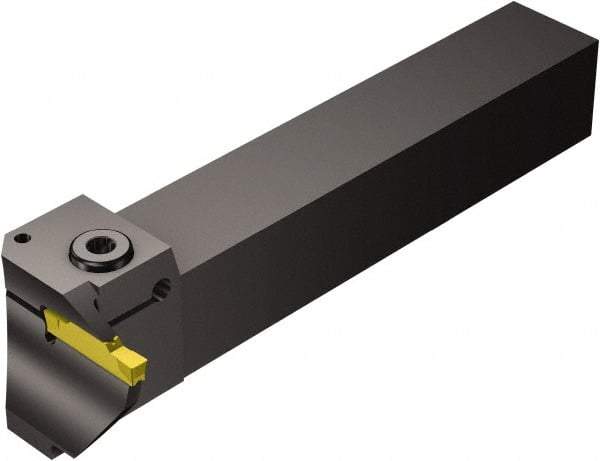

Sandvik Coromant - R/LG123..BM, External, Left Hand, 20.07mm Max Depth of Cut, Indexable Grooving Tool Holder - N123L2-0800-0008-TF Insert Compatibility, 25.4mm Shank Height, 25.4mm Shank Width, 156.5mm OAL
Item #: 05934872
Brand: Sandvik Coromant
Model #: 5733101
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7900 |
| Maximum Depth of Cut (mm) | 20.07 |
| Overall Length (mm) | 156.50 |
| Overall Length (Decimal Inch) | 6.1614 |
| Toolholder Style | R/LG123..BM |
| Insert Compatibility | N123L2-0800-0008-TF |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | CoroCut 1-2 |
| Through Coolant | Non Coolant Through |
| Insert Seat Size | L |
| Maximum Hole Depth (Decimal Inch) | 1.4725 |
| Maximum Bore Depth (Decimal Inch) | 1.4725 |
| Back of Bar to Cutting Edge (mm) | 152.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Center to Cutting Edge (mm) | 46.99 |
| Center to Cutting Edge (Decimal Inch) | 1.8500 |
| Head Height (Decimal Inch) | 1.0000 |
| Head Height (mm) | 25.40 |
| Head Length (mm) | 37.40 |
| Head Length (Decimal Inch) | 1.4725 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123L2-0800-0008-TF |
