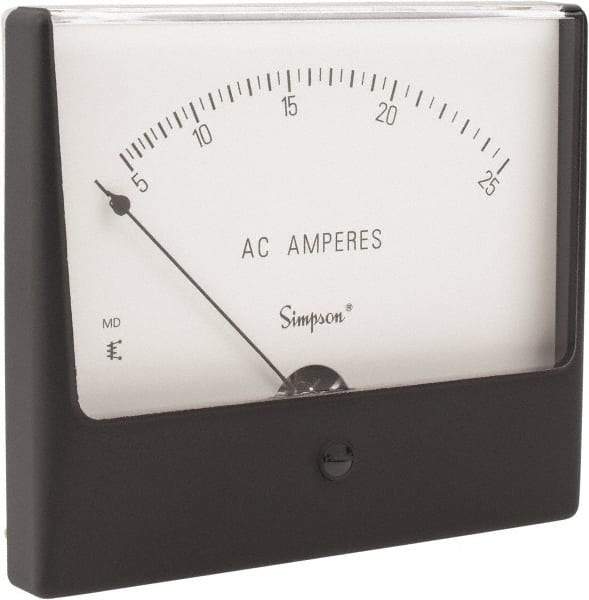

Simpson Electric - Analog, AC Ammeter, Panel Meter - 60 Hz, 0.002 Ohms at 60 Hz
Item #: 05915384
Brand: Simpson Electric
Model #: 03330
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Panel Meter Type | Panel Meter |
| Power Measurement Type | AC Ammeter |
| Panel Meter Display Type | Analog |
| Maximum Input AC Amperage | 25 |
| Terminal Type | Screw |
| Approximate Impedance (Ohms) | 0.002 @ 60 Hz |
| Frequency Rating (Hz) | 60 |
| Mounting Diameter (Decimal Inch) | 2-3/4 |
| Maximum Operating Temperature (F) | 149 |
| Minimum Operating Temperature (F) | -4 |
| For Use With | 1359 0-25 AAC 4-1/2 Model Panel Meter |
| Standards Met | UL Recognized File E91015 |
| PSC Code | 6625 |
