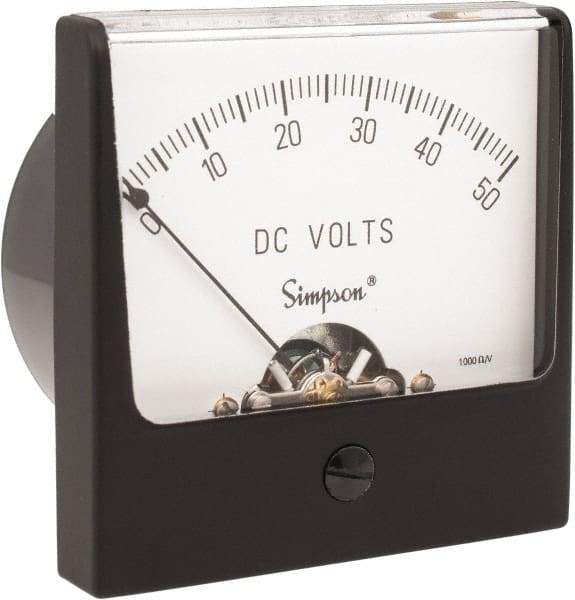

Simpson Electric - Analog, DC Voltmeter, Panel Meter - 60 Hz, 1000 Ohms at 60 Hz, 50 VDC
Item #: 05914965
Brand: Simpson Electric
Model #: 09600
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Panel Meter Type | Panel Meter |
| Power Measurement Type | DC Voltmeter |
| Panel Meter Display Type | Analog |
| Maximum Input Voltage | 50 VDC |
| Maximum Input DC Amperage | 50 |
| Terminal Type | Screw |
| Approximate Impedance (Ohms) | 1000 @ 60 Hz |
| Frequency Rating (Hz) | 60 |
| Mounting Diameter (Decimal Inch) | 2.1700 |
| Maximum Operating Temperature (F) | 149 |
| Minimum Operating Temperature (F) | -4 |
| For Use With | 1227 0-50 VDC 2-1/2 Model Panel Meter |
| Standards Met | UL Recognized File E91015 |
| PSC Code | 6625 |
