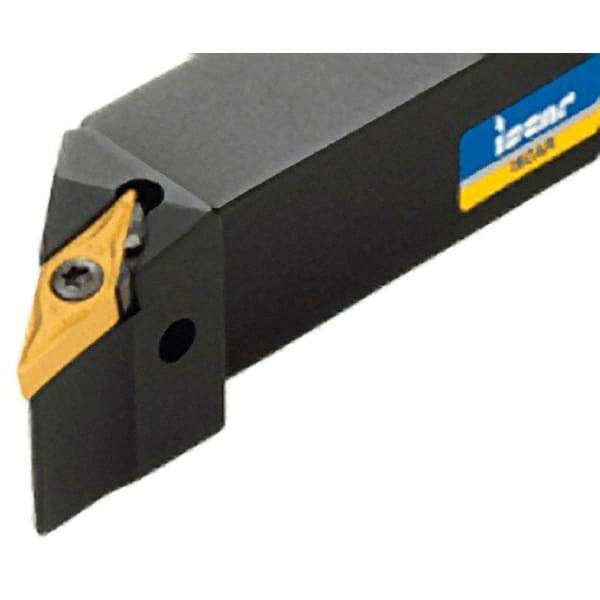

Iscar - SVJN, Right Hand Cut, 20mm Shank Height x 20mm Shank Width, Negative Rake Indexable Turning Toolholder - 125mm OAL, VN..12T3.. Insert Compatibility, Series Isoturn
Item #: 05810007
Brand: Iscar
Model #: 3601862
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SVJN |
| Rake | Negative |
| Rake Angle | -12 (Radial); -6 (Axial) |
| Series | Isoturn |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | VN..12T3.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 25.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9843 |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
