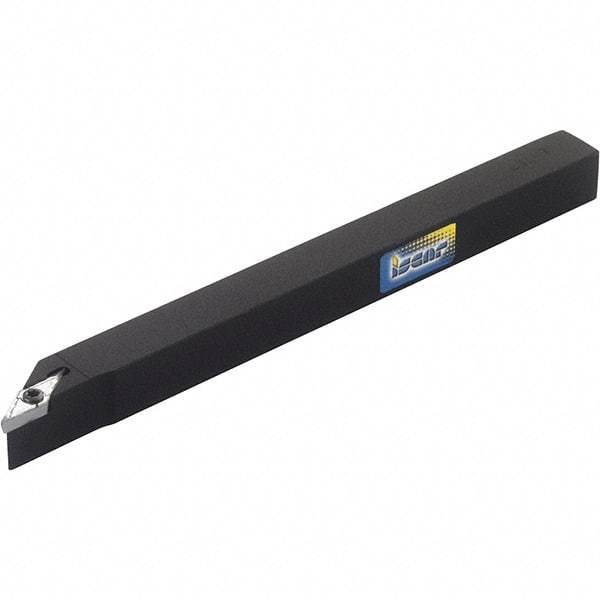

Iscar - PSAN, Right Hand Cut, 25mm Shank Height x 25mm Shank Width, Negative/Neutral Rake Indexable Turning Toolholder - 150mm OAL, SNMX 15.. Insert Compatibility, Series Isoturn
Item #: 05809967
Brand: Iscar
Model #: 3601821
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PSAN |
| Rake | Negative; Neutral |
| Rake Angle | -20 (Radial); 0 (Axial) |
| Series | Isoturn |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | SNMX 15.. |
| Multi-Use Tool | No |
| Insert Holding Method | Lever Lock |
| Back of Bar to Cutting Edge (mm) | 25.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9843 |
| Head Length (mm) | 38.00 |
| Head Length (Decimal Inch) | 1.4961 |
