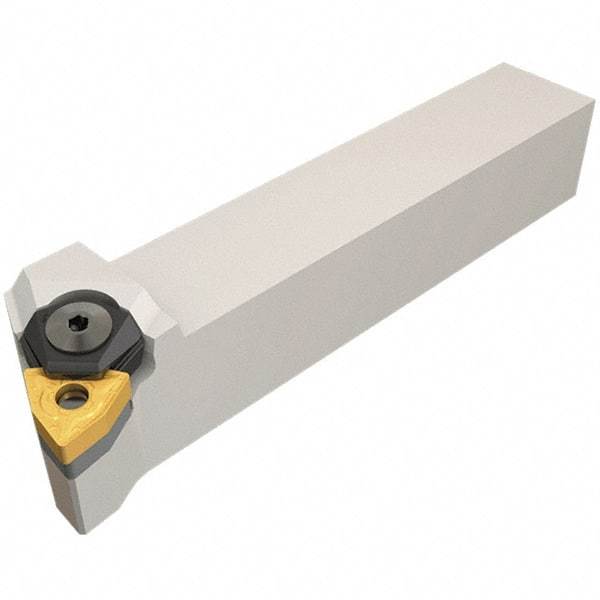

Iscar - MWLN, Left Hand Cut, 16mm Shank Height x 16mm Shank Width, Negative Rake Indexable Turning Toolholder - 100mm OAL, WNM..06.. Insert Compatibility, Series Isoturn
Item #: 05809694
Brand: Iscar
Model #: 3601299
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | MWLN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | Isoturn |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Insert Compatibility | WNM..06.. |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Head Length (mm) | 23.00 |
| Head Length (Decimal Inch) | 0.9055 |
