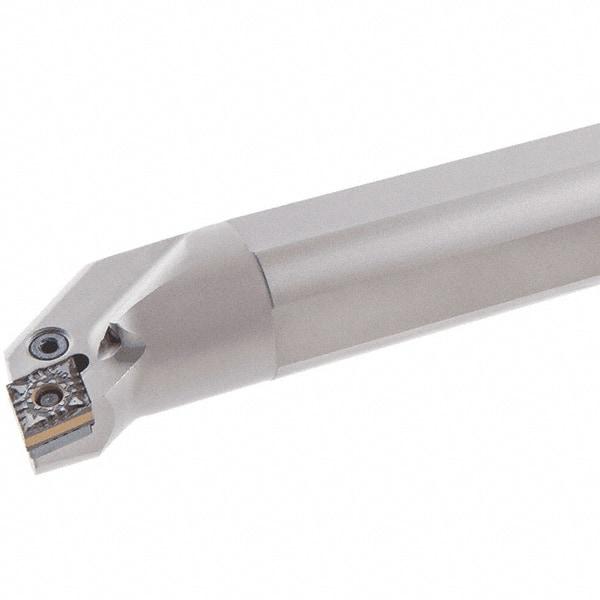

Iscar - 32mm Min Bore Diam, 250mm OAL, 25mm Shank Diam, S-PCLN Indexable Boring Bar - 48mm Max Bore Depth, CN.. 1204.. Insert, Lever Holding Method
Item #: 05809611
Brand: Iscar
Model #: 3601099
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-PCLN |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 48.00 |
| Maximum Bore Depth (Decimal Inch) | 1.8898 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | CN.. 1204.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Lever |
| Rake | Negative |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Rake Angle | -12 |
| Complete Insert Compatibility | CNGA 120404T; CNGA 120408E; CNGA 120408T; CNGA 120412T; CNGA 120416T; CNGG 120401-PP; CNGG 120402-PP; CNMA 120404; CNMA 120408; CNMA 120408F; CNMA 120412; CNMA 120416; CNMG 120404-GN; CNMG 120404-NF; CNMG 120404-PP; CNMG 120408-GN; CNMG 120408-NF; CNMG 12 |
