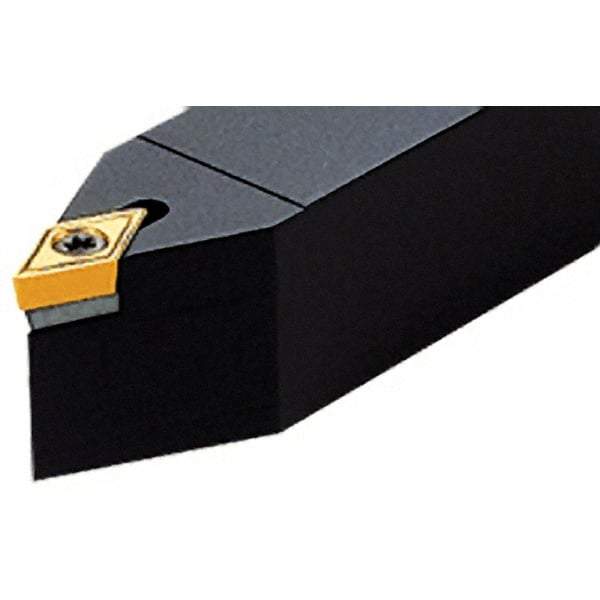

Iscar - SDNC, Neutral Cut, 25mm Shank Height x 25mm Shank Width, Neutral Rake Indexable Turning Toolholder - 150mm OAL, DC..11T3.. Insert Compatibility, Series Isoturn
Item #: 05809538
Brand: Iscar
Model #: 3600904
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Hand of Holder | Neutral |
Toolholder Style | SDNC |
Rake | Neutral |
Rake Angle | 0 |
Series | Isoturn |
Shank Width (mm) | 25.00 |
Shank Width (Decimal Inch) | 0.9843 |
Shank Height (mm) | 25.00 |
Shank Height (Decimal Inch) | 0.9843 |
Overall Length (mm) | 150.00 |
Overall Length (Decimal Inch) | 5.9055 |
Insert Compatibility | DC..11T3.. |
Multi-Use Tool | No |
Insert Holding Method | Screw |
Center to Cutting Edge (Decimal Inch) | 0.4921 |
Head Length (mm) | 30.00 |
Head Length (Decimal Inch) | 1.1811 |
