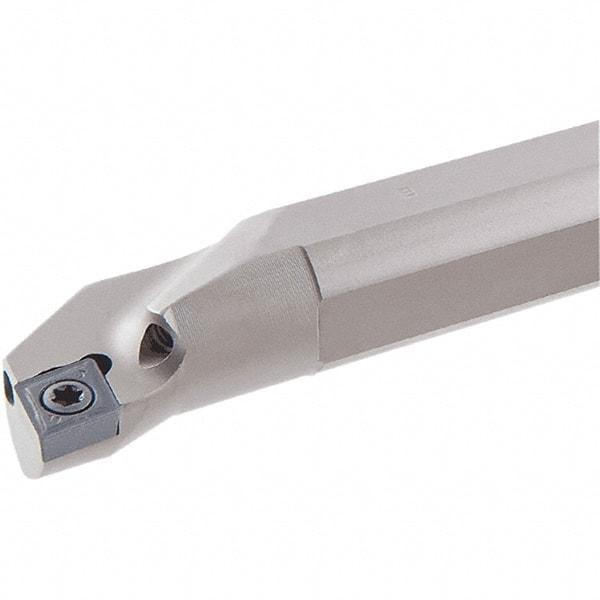

Iscar - 35mm Min Bore Diam, 250mm OAL, 25mm Shank Diam, S-SCLC Indexable Boring Bar - 55mm Max Bore Depth, CC.T 09T3.. Insert, Screw Holding Method
Item #: 05809470
Brand: Iscar
Model #: 3600855
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SCLC |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 35.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.3780 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 55.00 |
| Maximum Bore Depth (Decimal Inch) | 2.1654 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | CC.T 09T3.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Rake Angle | -4 |
| Complete Insert Compatibility | CCGT 09T301-AS; CCGT 09T302-AS; CCGT 09T304-AS; CCGT 09T308-AS; CCMT 09T302; CCMT 09T302-SM; CCMT 09T304; CCMT 09T304-14; CCMT 09T304-SM; CCMT 09T304T; CCMT 09T308; CCMT 09T308-14; CCMT 09T308-SM; CCMT 09T308T |
| Toolholder Material | Steel |
