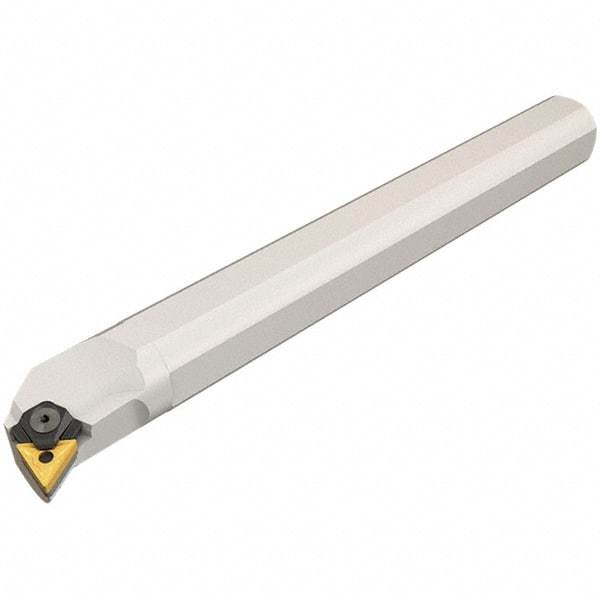

Iscar - 32mm Min Bore Diam, 250mm OAL, 25mm Shank Diam, S-MTLN-W Indexable Boring Bar - 40mm Max Bore Depth, TN.. 1604.. Insert, Wedge Holding Method
Item #: 05809389
Brand: Iscar
Model #: 3600608
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-MTLN-W |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 40.00 |
| Maximum Bore Depth (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | TN.. 1604.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Rake | Negative |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Rake Angle | -12 |
| Complete Insert Compatibility | TNGA 160404T; TNGA 160408E; TNGA 160408T; TNGA 160412T; TNGG 160402-PP; TNMA 160404; TNMA 160408; TNMA 160412; TNMA 160416; TNMG 160304-TF; TNMG 160308-TF; TNMG 160404-GN; TNMG 160404-PP; TNMG 160404-TF; TNMG 160408-GN; TNMG 160408-PP; TNMG 160408-TF; TNM |
