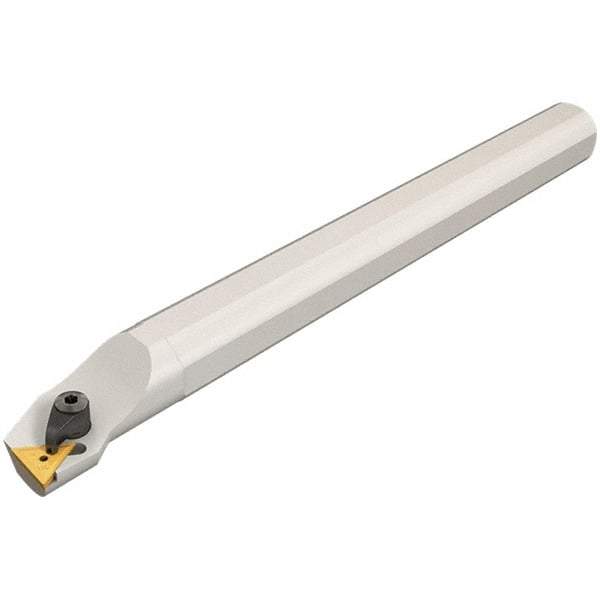

Iscar - 15.6mm Min Bore Diam, 140mm OAL, 12mm Shank Diam, S-CTFP Indexable Boring Bar - 34mm Max Bore Depth, TP.. 0902.. Insert, Clamp Holding Method
Item #: 05809348
Brand: Iscar
Model #: 3600182
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-CTFP |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 15.60 |
| Minimum Bore Diameter (Decimal Inch) | 0.6142 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 34.00 |
| Maximum Bore Depth (Decimal Inch) | 1.3386 |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | TP.. 0902.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Neutral |
| Center to Cutting Edge (mm) | 9.00 |
| Center to Cutting Edge (Decimal Inch) | 0.3543 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TPGN 090204T; TPMR 090202; TPMR 090204 |
