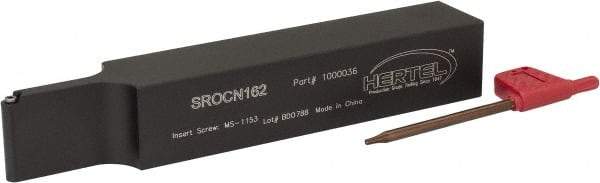

Hertel - SROC, Neutral Cut, 0° Lead Angle, 1" Shank Height x 1" Shank Width, Neutral Rake Indexable Turning Toolholder - 6" OAL, RC..21.5. Insert Compatibility, Series Screw-Type
Item #: 05697982
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | SROC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Screw-Type |
| Lead Angle | 0 |
| Shank Width (Inch) | 1 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | RC..21.5. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Inch) | 5/8 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6250 |
| Head Length (Decimal Inch) | 1.0000 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Toolholder Material | Steel |
