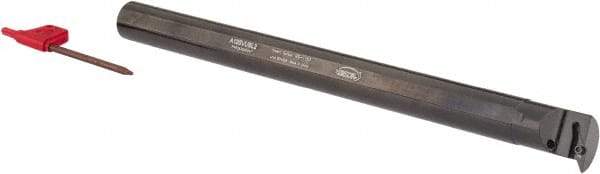

Hertel - 0.98" Min Bore Diam, 10" OAL, 3/4" Shank Diam, A-SVUB Indexable Boring Bar - VB.. Insert, Screw Holding Method
Item #: 05696018
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SVUB |
| Series | Screw-On |
| Minimum Bore Diameter (Decimal Inch) | 0.9800 |
| Hand of Holder | Left Hand |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | VB.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | -3 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5600 |
| Center to Cutting Edge (Decimal Inch) | 0.5620 |
| Insert Thickness (Inch) | 1/8 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | 0 |
| Coolant Hole Thread Size (Inch) | 1/8-27 NPT |
| Complete Insert Compatibility | VB.. 221 |
| Toolholder Material | Steel |
