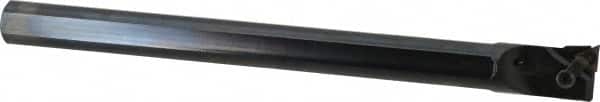

Hertel - 1.2" Min Bore Diam, 12" OAL, 1" Shank Diam, A-CTFP Indexable Boring Bar - TP.. Insert, Clamp Holding Method
Item #: 05695390
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-CTFP |
| Minimum Bore Diameter (Decimal Inch) | 1.2000 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | TP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Positive |
| Lead Angle | 0 |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Insert Thickness (Inch) | 1/8 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | TP.. 322 |
| Toolholder Material | Steel |
