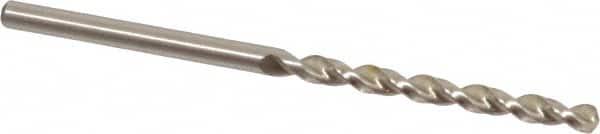

Accupro - #29 130° Cobalt Jobber Drill - Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-3/4" OAL, Split Point
Item #: 05598636
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Wire) | #29 |
| Drill Bit Size (Decimal Inch) | 0.1360 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 1-17/32 |
| Flute Length (mm) | 39.00 |
| Flute Length (Decimal Inch) | 1.5313 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7500 |
| Overall Length (Inch) | 2-3/4 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.1360 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 338 |
| Drill Bit Grade | High Performance |
| Material Grade | M35 |
