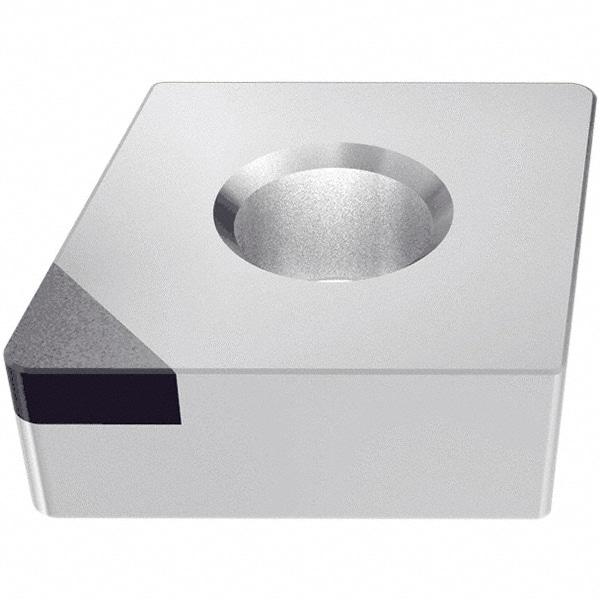

Iscar - DNMA432 Grade IB50 CBN Turning Insert - 55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 05596382
Brand: Iscar
Model #: 5700436
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | DNMA |
| Insert Size | 432 |
| Material | CBN |
| Length (mm) | 15.50 |
| Length (Decimal Inch) | 0.6102 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | IB50 |
| Rake | Neutral |
| Relief Angle | 0 |
| Included Angle | 55 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 0.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
