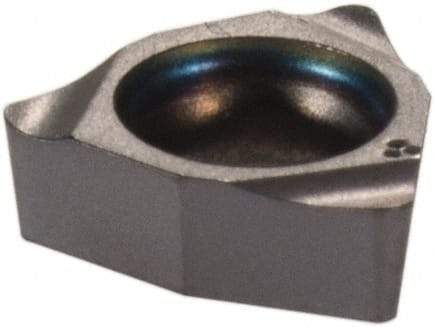

Iscar - WCGT020104 Grade IC908 Carbide Turning Insert - TiN/TiAlN Finish, 80° Trigon, 5/32" Inscr Circle, 1/16" Thick, 1/64" Corner Radius
Item #: 05560792
Brand: Iscar
Model #: 5505578
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WCGT |
| Insert Size | 020104 |
| Material | Carbide |
| Length (mm) | 2.18 |
| Length (Decimal Inch) | 0.0860 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0625 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | IC908 |
| Coating | TiN/TiAlN |
| Material Grade | Submicron |
| ISO Number | WCGT 020104L |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | WCGT 020104L |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 2.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Insert Holding Method | Screw |
| Multi Use Application | Boring |
| MultiUseTool | Yes |
| Shape | Trigon |
