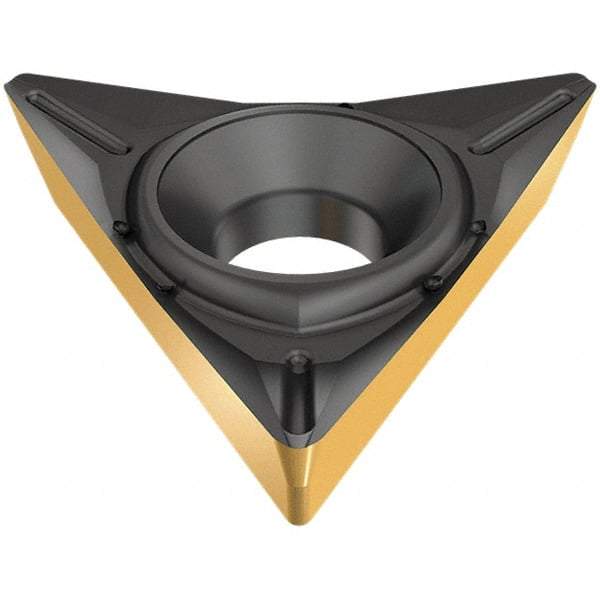

Iscar - TPGT2-0 SP Grade IC907 Carbide Turning Insert - TiAlN/TiN Finish, 60° Triangle, 1/4" Inscr Circle, 3/32" Thick, 0.0079" Corner Radius
Item #: 05560438
Brand: Iscar
Model #: 5505422
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGT |
| Insert Size | 2-0 |
| Material | Carbide |
| Length (mm) | 11.00 |
| Length (Decimal Inch) | 0.4331 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | IC907 |
| Coating | TiAlN/TiN |
| Material Grade | Submicron |
| Chip Breaker | SP |
| Hole Diameter (mm) | 3.00 |
| Hole Diameter (Decimal Inch) | 0.1181 |
| Relief Angle | 11 |
| Coating Process | PVD |
| Included Angle | 60 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Insert Holding Method | Screw |
| Shape | Triangle |
