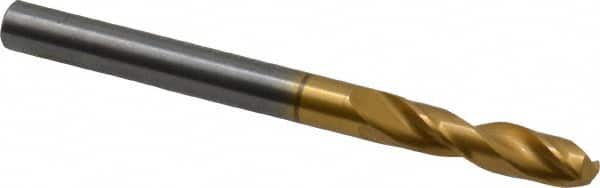

Guhring - 5.19938mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit - TiN Finish, Right Hand Cut, 26mm Flute Length, 62mm OAL, SU Point, Straight Shank
Item #: 05535653
Brand: Guhring
Model #: 9012420052000
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2047 |
| Drill Bit Size (mm) | 5.20 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 26.00 |
| Overall Length (mm) | 62.00 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | SU Point |
| Shank Diameter (Decimal Inch) | 0.2047 |
| Specification Designation | DIN |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (mm) | +0.004 to +0.016 |
| Specification Number | DIN 6539 |
| Web Thinning | Web-Thinned |
| Material Grade | Submicron |
| Series/List | 1242 |
