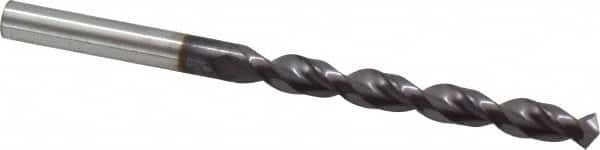

Jobber Length Drill Bit: 0.2795″ Dia, 130 °, Powdered Metal FIREX Finish, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank
Item #: 05535034
Brand: Guhring
Model #: 9005300071000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2795 |
| Drill Bit Material | Powdered Metal |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | FIREX? |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Parabolic |
| Point Type | Cone Relief |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Flute Length (Inch) | 2-23/32 |
| Shank Diameter (Decimal Inch) | 0.2795 |
| Overall Length (Inch) | 4-9/32 |
| Drill Bit Diameter Tolerance | -0.022 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Specification Number | DIN 338 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Material Grade | PM-ASP-60 |
| Specification Designation | DIN |
